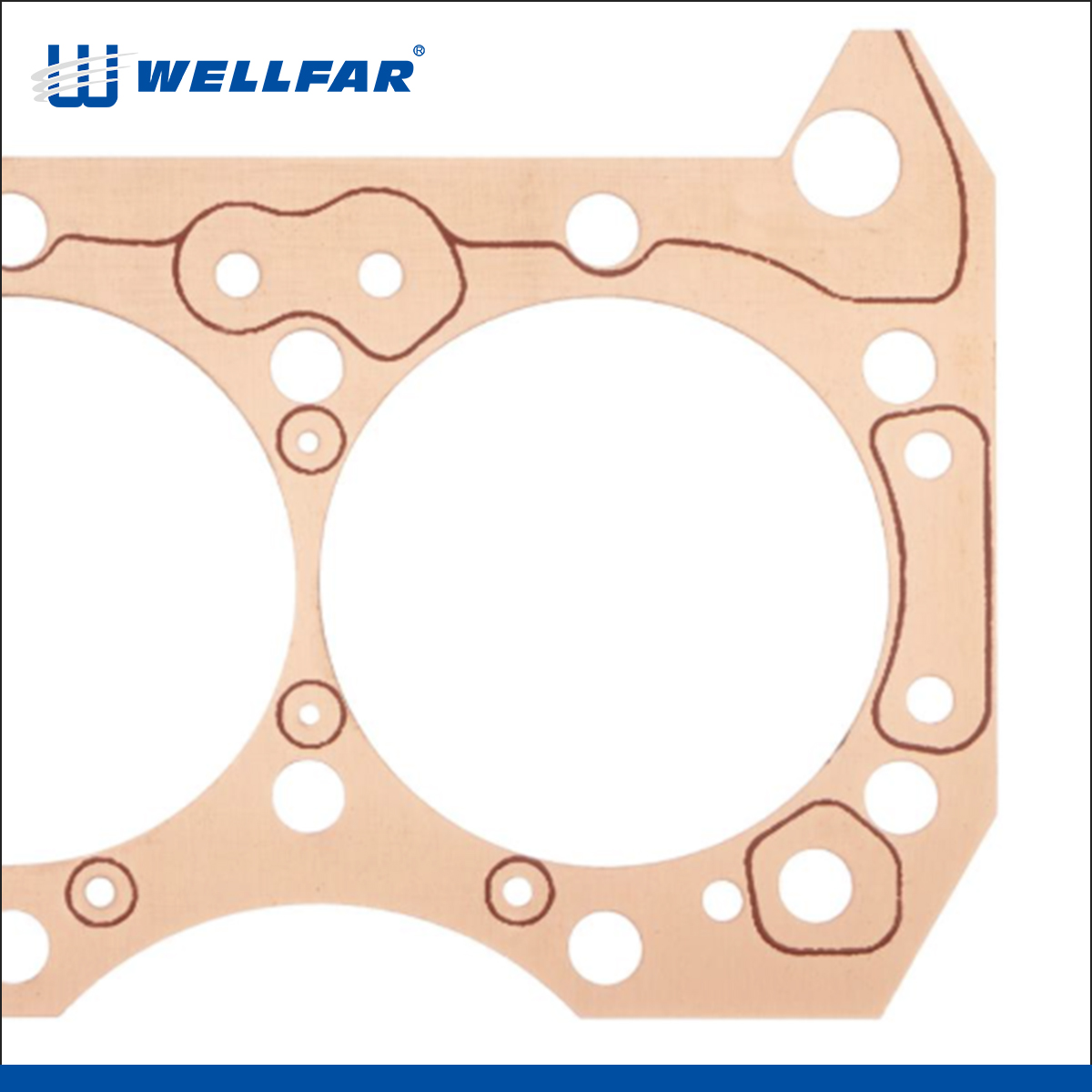

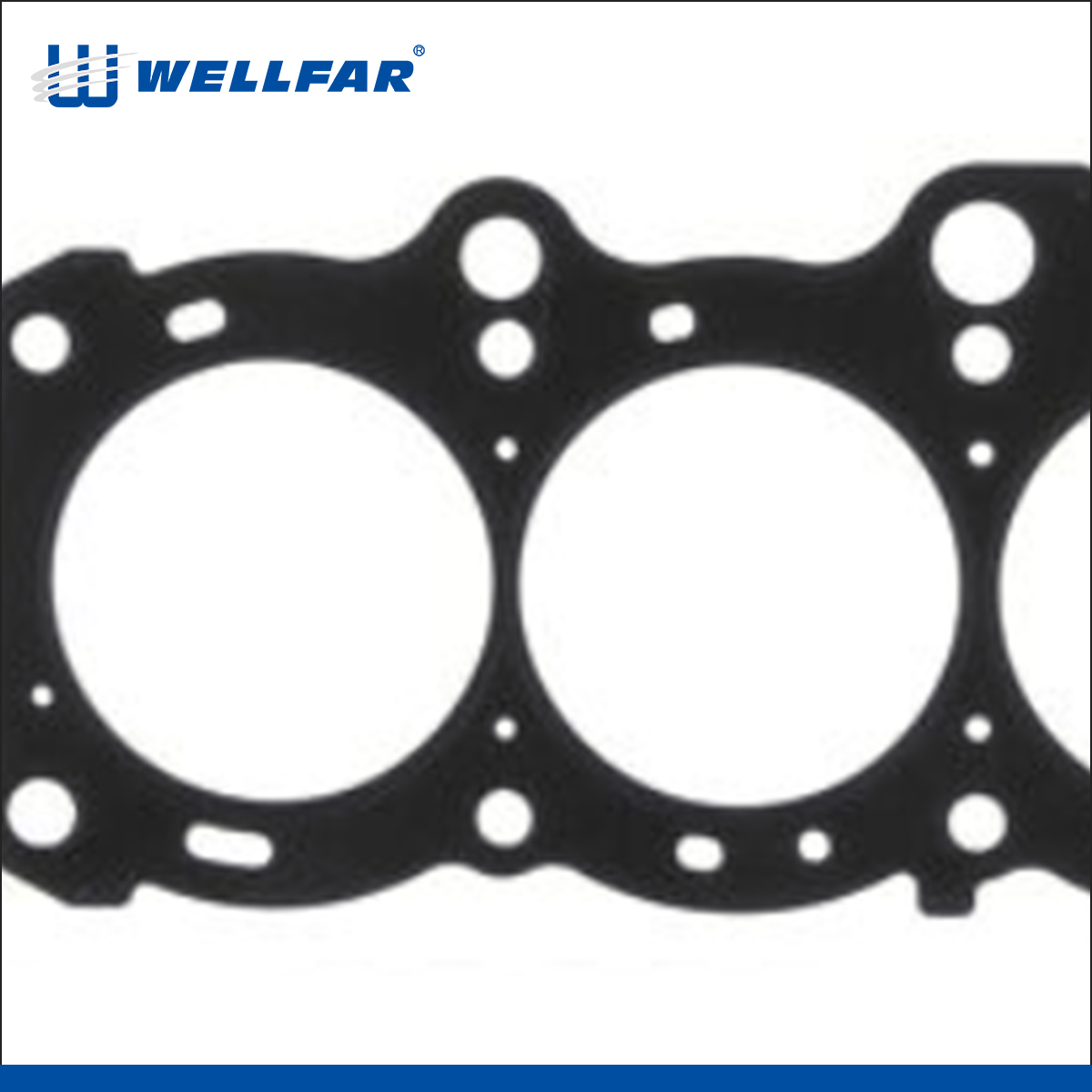

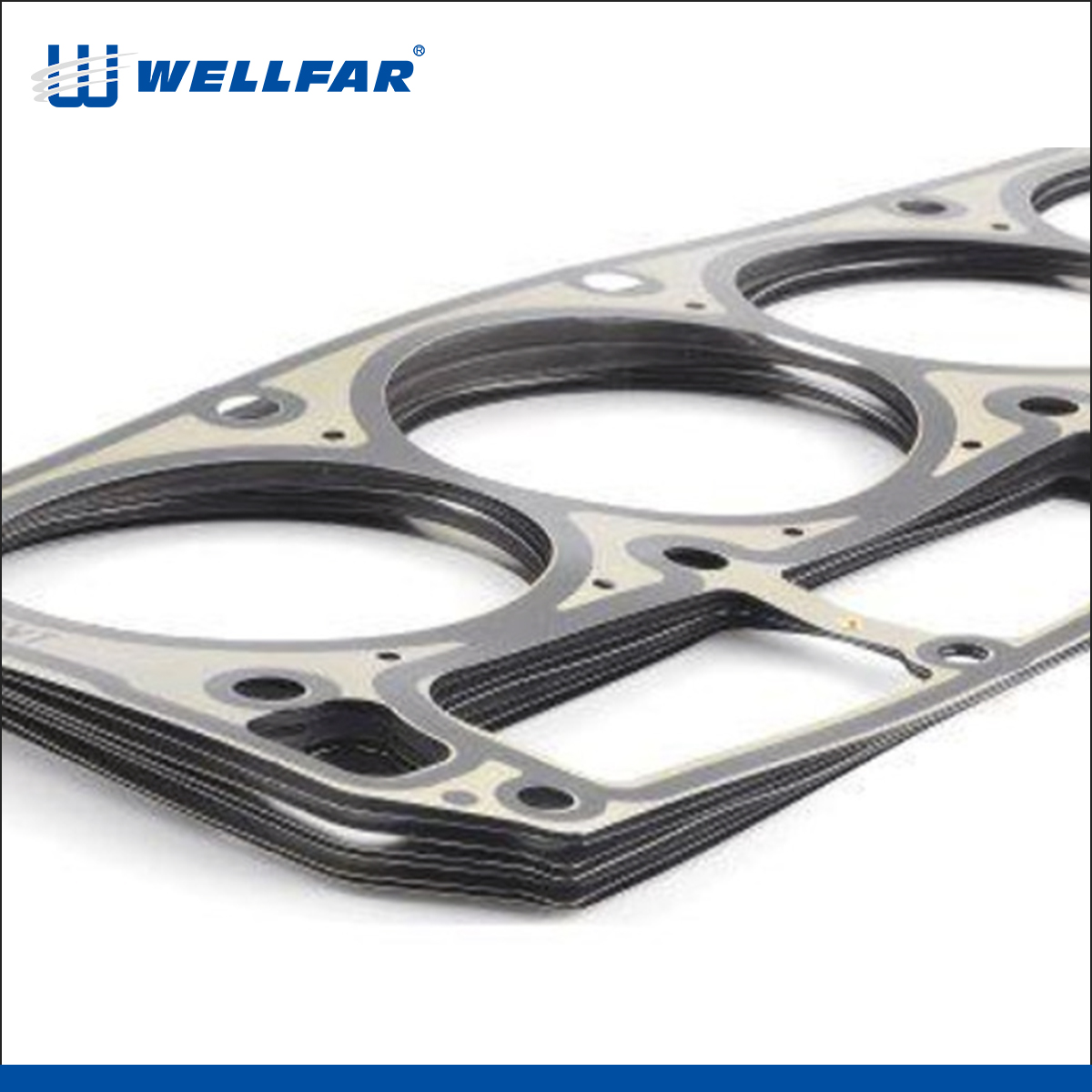

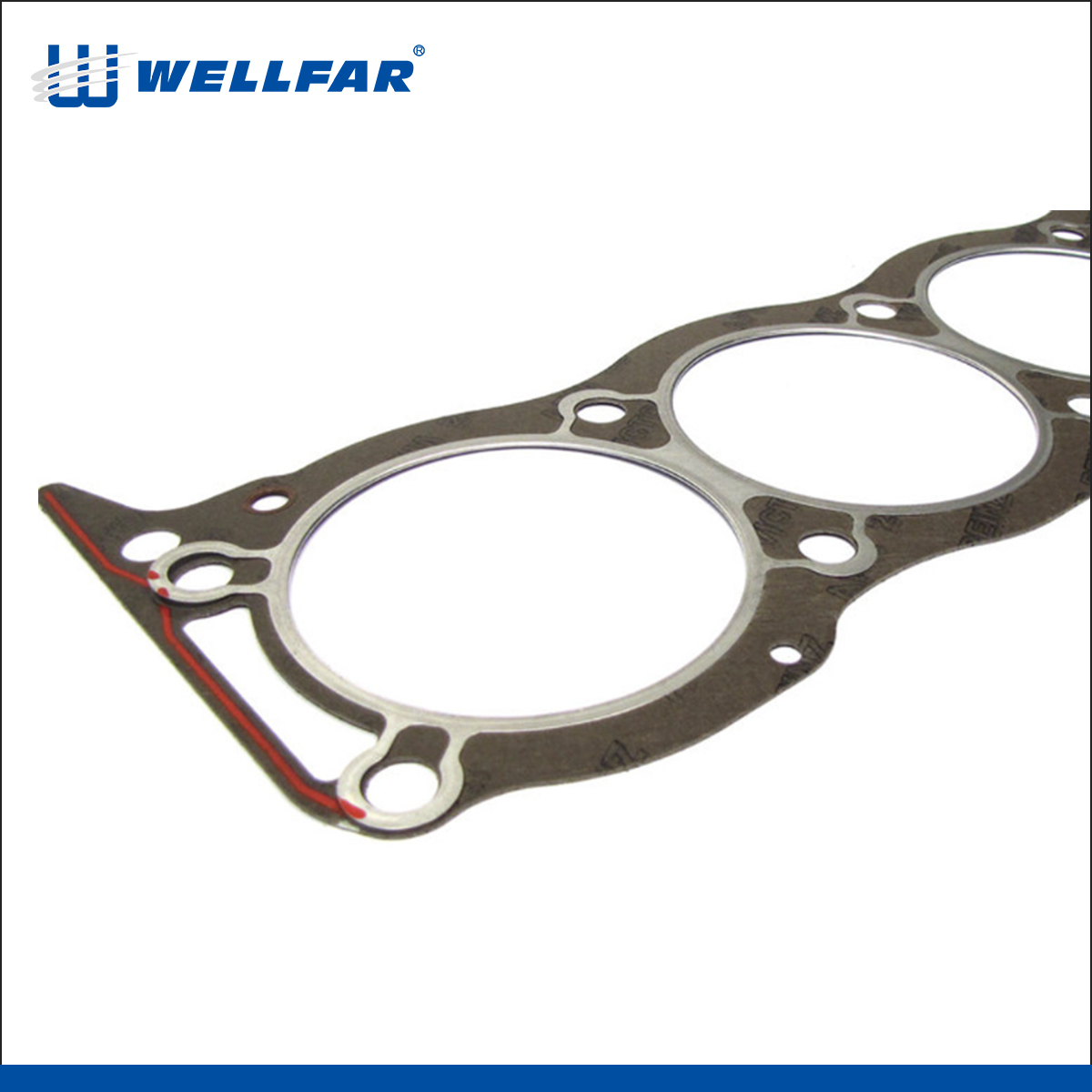

Head gaskets are an essential part of internal combustion engines. They seal the area between cylinder heads and the engine block to prevent combustion gases and coolant from leaking. The tight secure seal allows a car to generate power and helps avoid damage to an engine’s performance. In addition, the seal provided by a head gasket prevents the gases from combustion from leaving the combustion chamber and helps channel the gases to the exhaust system. The main types of cylinder head gaskets are multi-layer steel (MLS), composite, copper, and elastomer. MLS gaskets are the most common and durable for modern vehicles, while composite gaskets are an older, less expensive option. Copper gaskets are best for high-performance applications, and elastomer gaskets have a steel core with a rubber sealing bead. 1.Multi-Layer Steel (MLS) Construction: Consists of two or more layers of stainless steel with a flexible adhesive or elastomer. Best for: Modern vehicles, as they are very durable and can handle high pressure and heat. Variations: May include a wire ring or "fire ring" that provides an extra-strong seal around the cylinder bore. 2.Composite Construction: Typically a fiber material, like cellulose, impregnated with rubber compounds. Best for: Older or budget-friendly applications due to lower cost. Considerations: Less durable than MLS and can be prone to "blowouts". 3.Copper Construction: Made of solid copper, which is soft and malleable. Best for: High-performance engines due to its excellent heat distribution and ability to conform to a tight seal. Considerations: Often requires O-rings for installation and may be more expensive. 4.Elastomer Construction: Features a steel core with a rubberized bead that creates the seal. Best for: Applications where a balance of sealing and vibration damping is needed. 5.Other Types Shim Steel: One of the oldest types, made from stamped steel. Graphite: Known for handling high temperatures and commonly used in racing engines. Paper: Similar to composite gaskets, they are economical but less durable than modern options. Asbestos: Formerly common, but now largely obsolete due to health concerns.
Head Gasket
2025-12-30 00:21
