Why Heavy Duty Diesel Engine Has Piston Sleeve

1. Wear Protection

HD diesels operate with extremely high combustion pressure and inertia forces. These loads are transferred through the piston pin into the piston bosses. If the pin runs directly in aluminum, the bore wears quickly, becomes oval, and loses clearance control.

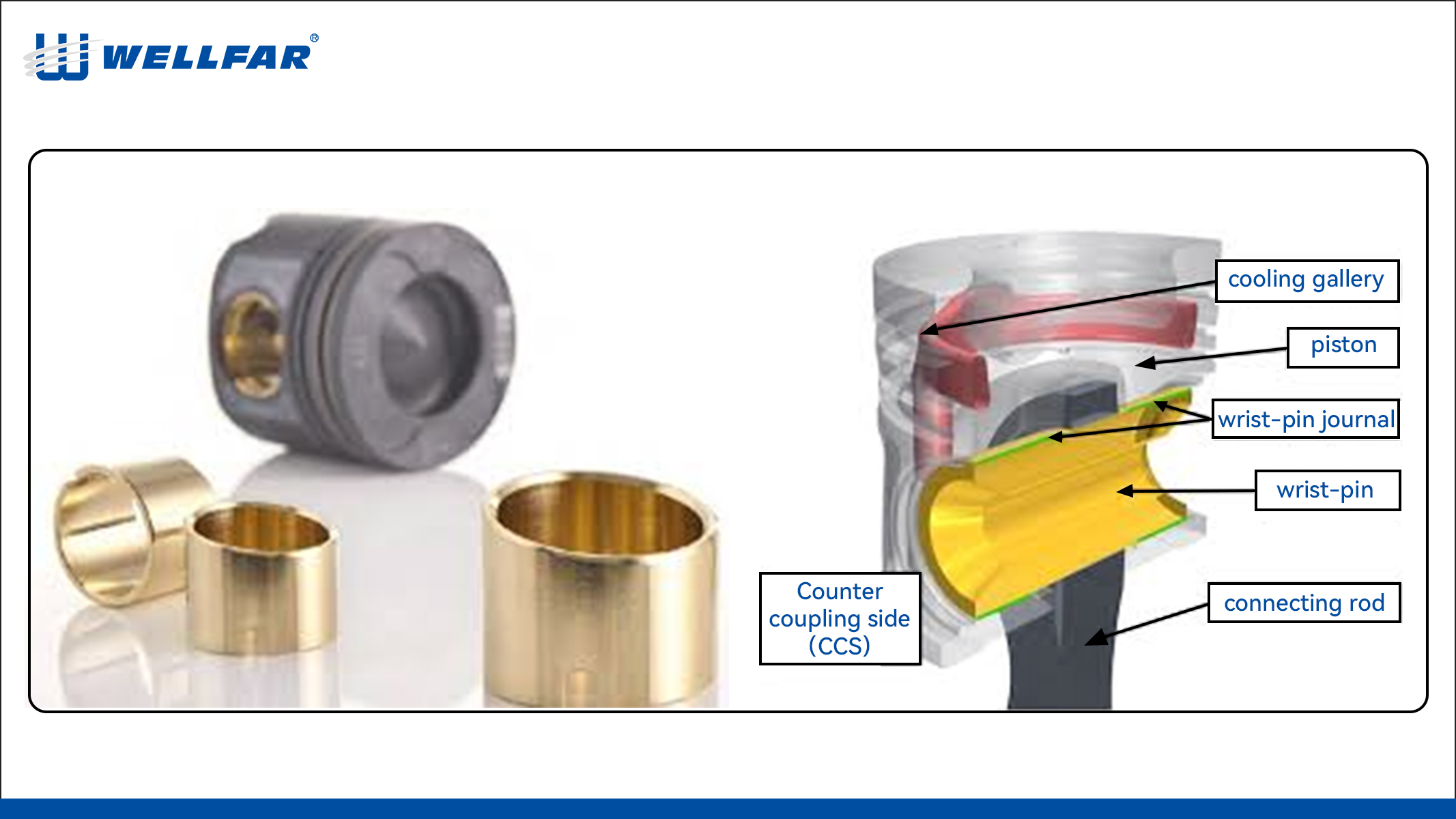

A bronze or copper-alloy sleeve provides a much harder, more fatigue-resistant surface. It takes the wear instead of the piston body and protects the aluminum from permanent damage.

2. Improved Lubrication and Anti-Seizure

The piston pin works under boundary or mixed lubrication, with oscillating motion and high temperature. This makes it prone to scuffing and seizure.

Pin sleeves usually contain oil holes and grooves and are made from materials with good oil affinity. Bronze has natural anti-galling properties and works well against steel pins. This helps maintain a stable oil film and reduces friction and seizure risk.

3. Rebuildability and Lower Lifecycle Cost

In HD engines, long service life and rebuildability are critical.

Without a sleeve, worn pin bores mean the whole piston must be scrapped. With a sleeve, the worn bushing can be pressed out, replaced, and sized again. This allows the piston to be reused and greatly reduces overhaul cost and downtime.

4. Thermal and Dimensional Stability

Aluminum expands much more than steel at high temperature. If the pin runs directly in aluminum, clearance changes greatly between cold and hot conditions.

A bronze sleeve has lower thermal expansion and better shape stability, helping maintain proper clearance and reducing cold knock and hot seizure.

5. Higher Load Capacity

The pin–sleeve interface works like a plain bearing. The sleeve increases contact strength and fatigue resistance, allowing higher cylinder pressure and longer durability.
