Diesel Engine Cylinder Head Manufactue Process Design Concept

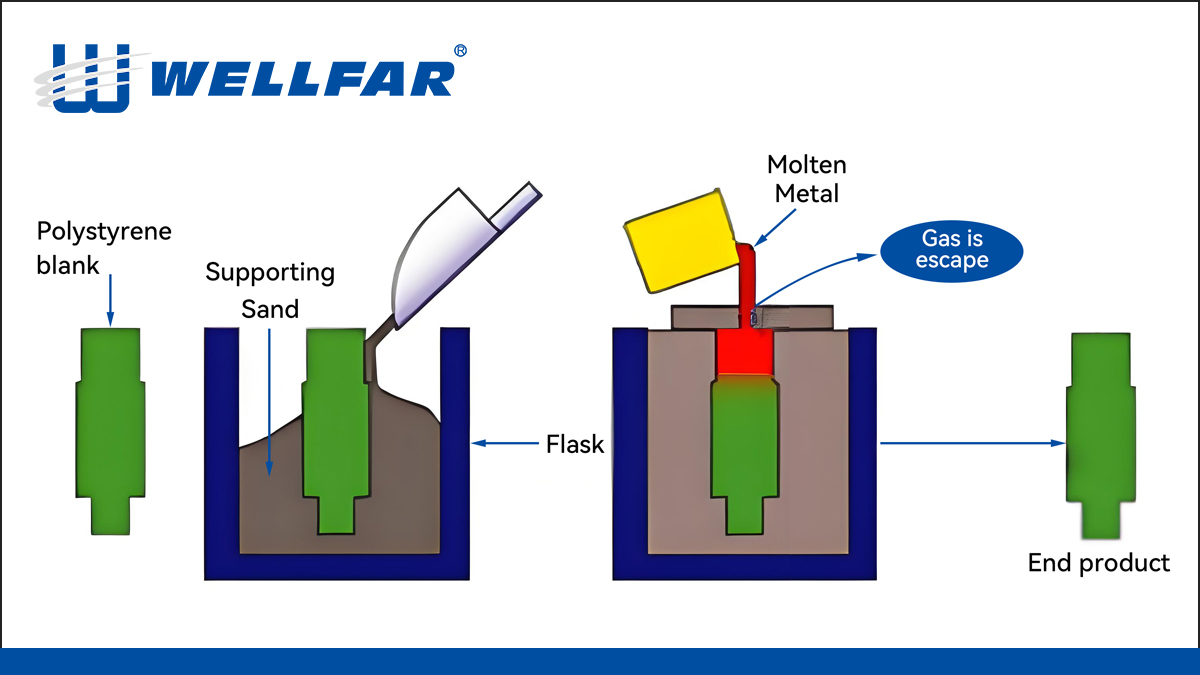

1. Casting and Metallurgical Strategy

The diesel engine cylinder head is typically produced from Compacted Graphite Iron (CGI) or high-strength Gray Iron. CGI is preferred for its superior tensile strength and thermal fatigue resistance, allowing for thinner walls without sacrificing durability.

· Precision Coring: Using "Cold Box" resin-sand cores, the internal architecture for the intake/exhaust ports and the cooling water jacket is defined. The core design must ensure smooth internal transitions to optimize airflow and minimize "dead zones" in the cooling circuit that could lead to localized overheating.

· Controlled Solidification: The casting process utilizes localized "chills" on the fire deck—the surface exposed to combustion. This encourages rapid cooling, resulting in a refined grain structure that resists the "thermal checking" or cracking common in heavy-duty cycles.

2. Machining and Component Integration

The machining concept utilizes high-torque CNC centers to ensure the geometric alignment of the overhead cam and valvetrain.

· Single-Pass Fire Deck Milling: The bottom surface is machined to a strict flatness and Roughness Average (Ra). This finish is critical for the Multi-Layer Steel (MLS) gasket, ensuring it can withstand combustion pressures exceeding 2,000 psi.

· Concentricity of Seats and Guides: Valve guides and seats are installed using a shrink-fit process (heating the head or cryogenically cooling the inserts). Post-installation, the valve seats are machined using the guide as the center point. This ensures absolute concentricity, which is vital for heat transfer from the valve to the coolant jacket.

· Injector Bore Precision: The bores for the Electronic Unit Injectors (EUI) are reamed to a mirror finish. This ensures the integrity of the O-ring seals, preventing high-pressure fuel from leaking into the engine oil.

3. Validation and Testing

The final stage involves rigorous "Leaky-Bucket" and vacuum tests. The cooling jackets are pressurized to detect casting porosity, while the valve-to-seat seals are vacuum-tested to ensure 100% compression retention. Finally, ultrasonic testing verifies that the "webbing" between the exhaust valves remains thick enough to survive years of high-temperature operation.
