12-Valve VS 24-Valve 6BT

• The Cummins 5.9L 6BT diesel comes in two main variants: the 12-valve and the 24-valve. The name refers to valve count, but the difference runs deeper — affecting the cylinder head, valvetrain, and fuel system. For parts buyers, this determines which components actually fit.

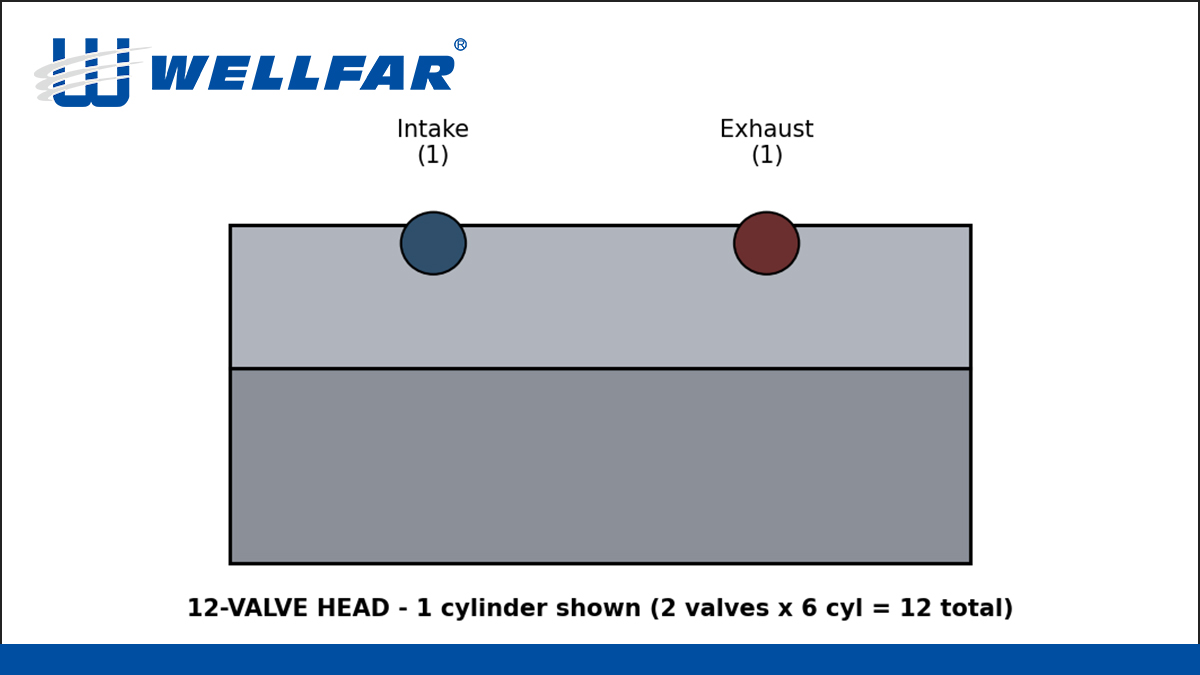

12-Valve: Simple and Mechanical

• The 12-valve engine uses two valves per cylinder — one intake, one exhaust — for twelve total across six cylinders. It was the first version of the 6BT and runs on a fully mechanical fuel system with no engine computer required. Its simplicity makes it a favorite for easy repair and popular engine swaps.

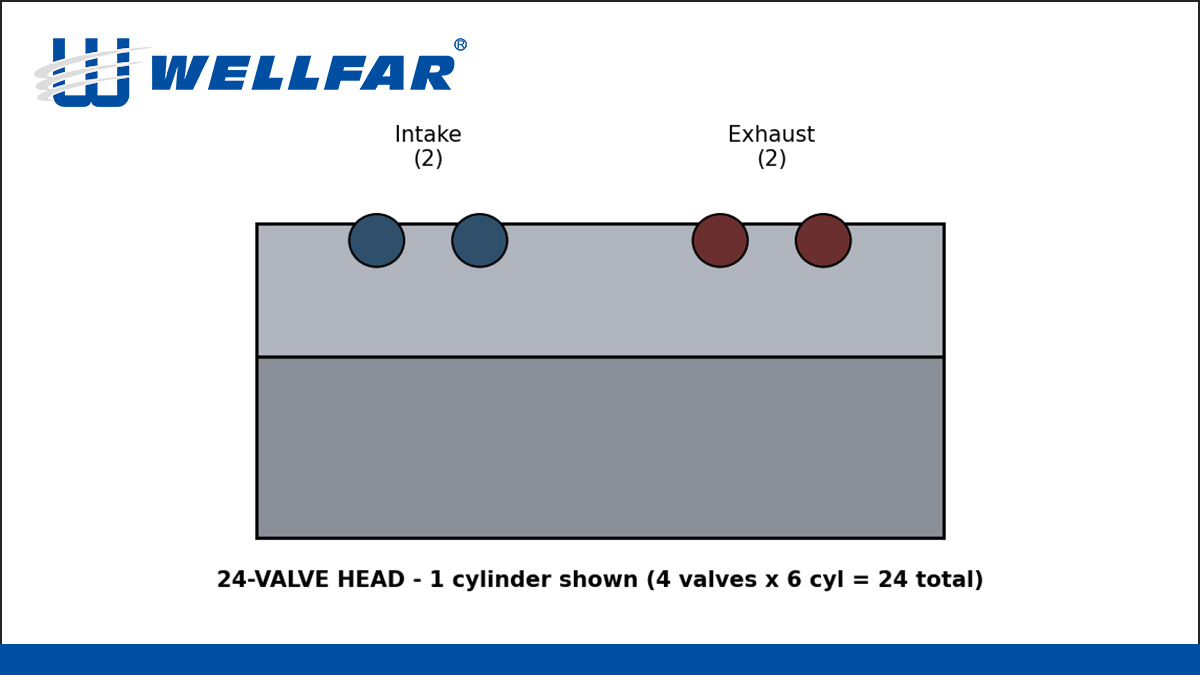

24-Valve: Better Breathing, Newer Fuel Systems

• The 24-valve version has four valves per cylinder — two intake, two exhaust — for twenty-four total. The added valves improve airflow. This later engine uses newer fuel systems, including electronic control and common-rail injection on many models.

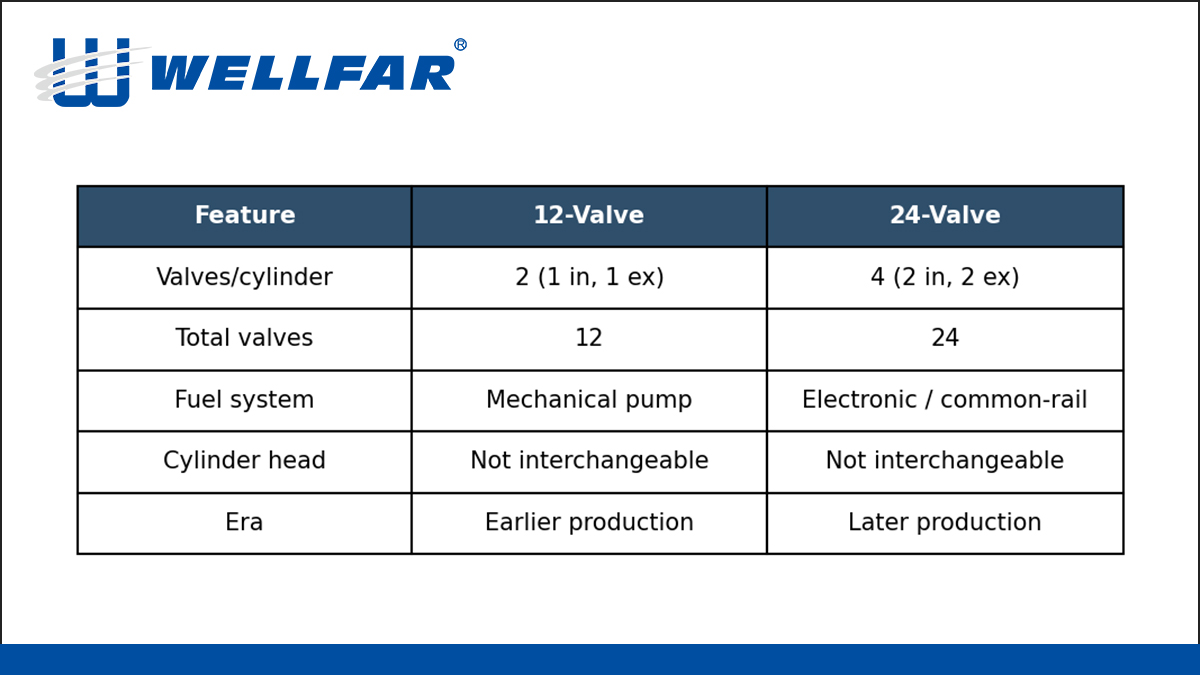

Why It Matters for Parts

• Cylinder heads: different designs, not interchangeable.

• Valvetrain: rockers, pushrods, and springs differ between types.

• Fuel system: 12-valve uses a mechanical pump; 24-valve often uses electronic or common-rail systems.

• Gaskets: head gaskets and top-end gaskets are specific to each valve type.

A common mistake is ordering a head or gasket for the wrong valve type — parts can look similar but won't fit. Confirm valve type before ordering by counting valves under the valve cover or checking the dataplate build code.

Both types remain strong sellers. The 12-valve suits swaps and simple builds; the 24-valve serves later trucks and machines. Label parts clearly by valve type to avoid costly mix-ups.
