The 4BTA Explained What Aftercooling Means

The Cummins 4BT family comes in a few versions, and one you will see often is the 4BTA. The extra letter “A” stands for aftercooled. Knowing what this means helps you match parts correctly and explain the engine clearly to customers.

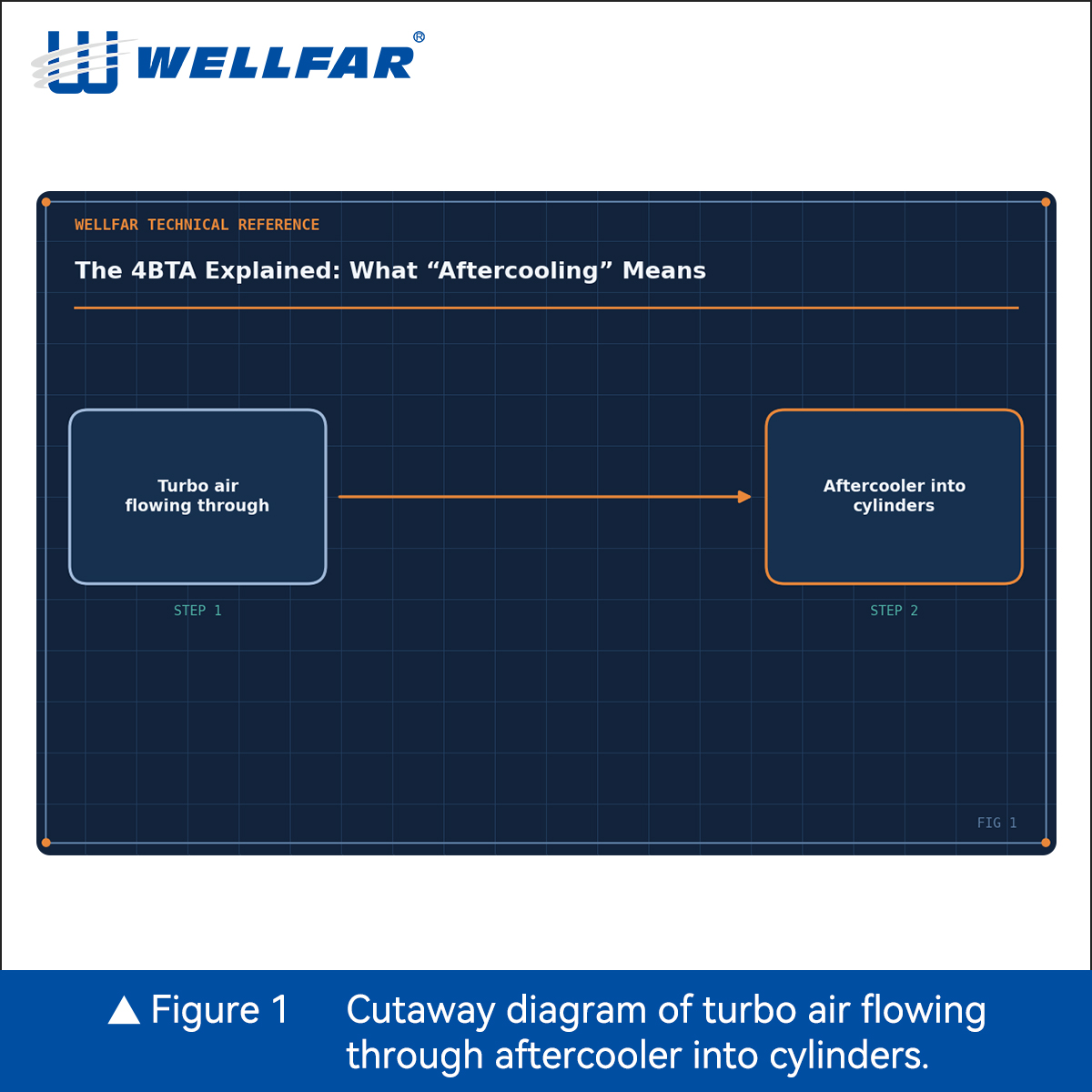

When a turbocharger pushes air into the engine, compressing that air makes it hotter. Hot air is thinner and holds less oxygen. An aftercooler, also called a charge-air cooler or intercooler, cools this compressed air before it enters the cylinders. Cooler air is denser, so it packs in more oxygen. More oxygen lets the engine burn more fuel cleanly, which means more power, lower exhaust temperature, and better efficiency. Under heavy load, boost pressure rises and so does air temperature, so the aftercooler works hardest exactly when it is needed most.

So a 4BTA is a 3.9-liter four-cylinder engine that is both turbocharged and aftercooled. A plain 4BT is turbocharged but has no aftercooler. The 4BTA usually makes more power and runs cooler under load, reducing stress on pistons and valves.

There are two common aftercooler designs. Air-to-air uses outside air flowing over a small core, much like a radiator, and is usually mounted in front of the main coolant radiator. Air-to-water uses engine coolant, or in marine engines, raw sea water, flowing through a separate loop to cool the charge air. Marine 4BTA engines often use water cooling because sea water is cold and always available, keeping the cooler compact.

For parts buyers, the aftercooler type matters. The cooler core, hoses, clamps, and brackets differ between air-to-air and water-cooled setups. A leaking or blocked aftercooler causes low power, black smoke, and high exhaust temperature, so it is a real wear item that shops test for leaks and corrosion.

When ordering, always confirm whether the engine is a 4BT or 4BTA, and which aftercooler type it uses. This makes sure the charge-air parts fit correctly the first time.

The aftercooler is a simple idea with a big result: cooler air means more power, cleaner combustion, and a longer-lasting engine.
